SHAW RESIDENTIAL ADDITION

MORE

PROJECTS





 COMING SOON

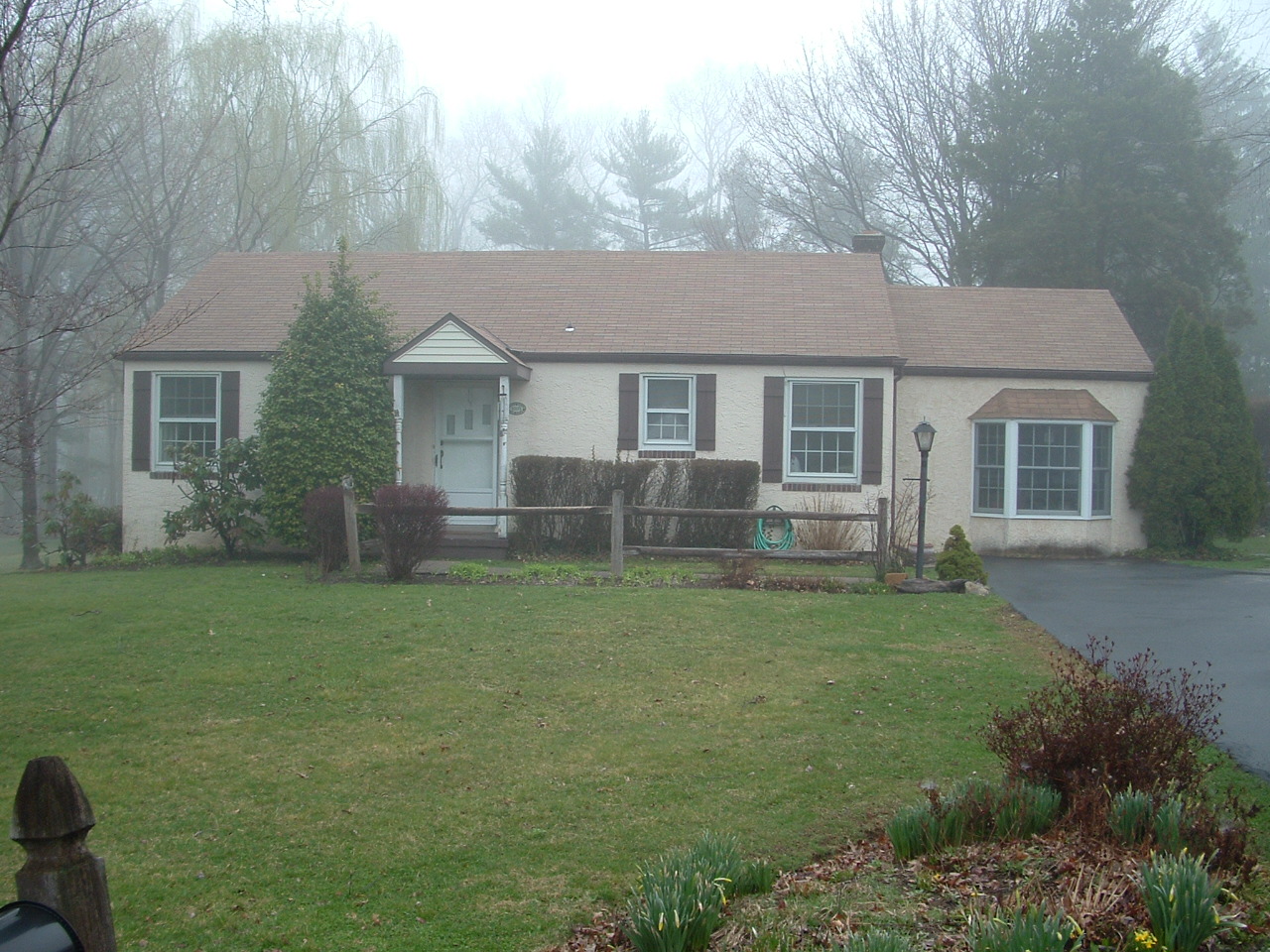

PHOTOGRAPH OF FRONT (Before)   PHOTOGRAPH OF FRONT (After)

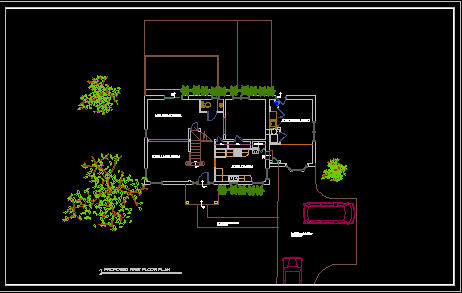

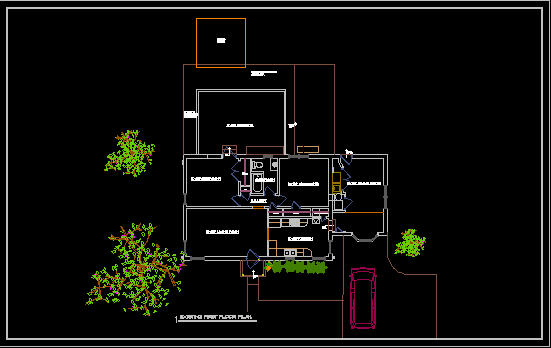

EXISTING FLOOR PLAN   PROPOSED FIRST FLOOR PLAN

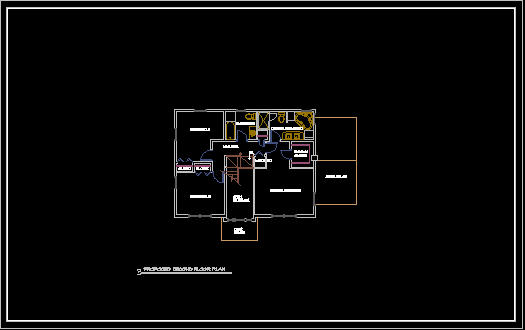

PROPOSED SECOND FLOOR PLAN   PROPOSED FRONT ELEVATION

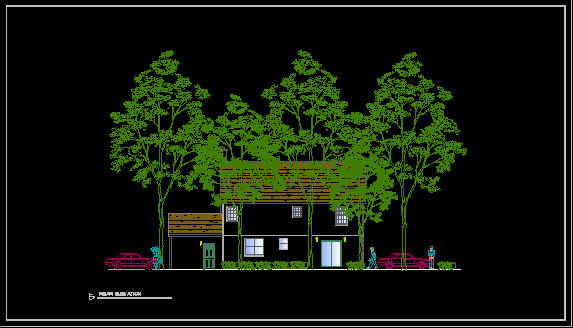

PROPOSED REAR ELEVATION



The Shaw addition:  First Level added a new entry with stair to the new second floor level, changed existing bedrooms into new Dining, and Great Room. The Second Level added a Master Bedroom and Bathroom, Bedroom #1, Bedroom #2, Bathroom, Laundry Room and Linen Closet. (1257 Sq Ft) located in Montgomery Township.
